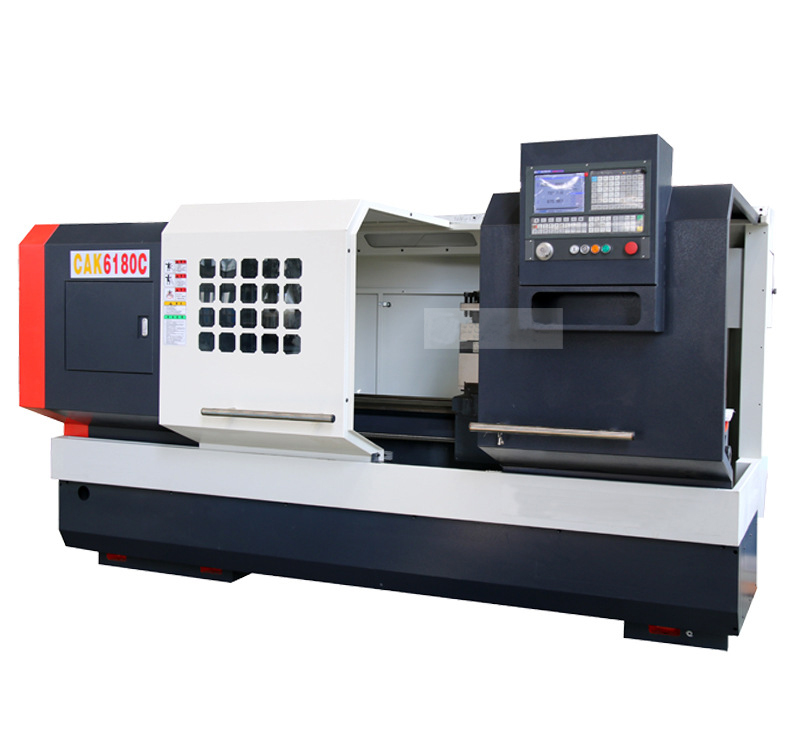

CAK6180x750臥式數控車重型車床

◆該機床用于加工中小型軸類、盤類零件，可以車削各種螺紋、圓弧、圓錐及回轉體的內外曲面，廣泛應用于水暖器材、儀表、汽車、摩托車、軸承等行業。

◆強度高鑄鐵 High quality casting boby

◆精密滾珠絲杠 Precision ball screws

◆導軌高頻淬火，鑲貼耐磨片 Hardened and ground bed guide way coated with Turcite-B

◆自動集中潤滑 Integrated automatic lubrication system

主要技術參數	SPECIFICATIONS	Units	CAK6180 CAK6180B CAK6180C
床身上更大回轉直徑	Swing over bed	mm	800
橫滑板上更大回轉直徑	Swing over cross slide	mm	520
更大工件長度	Distance between centers	mm	750/1000/1500/2000/3000

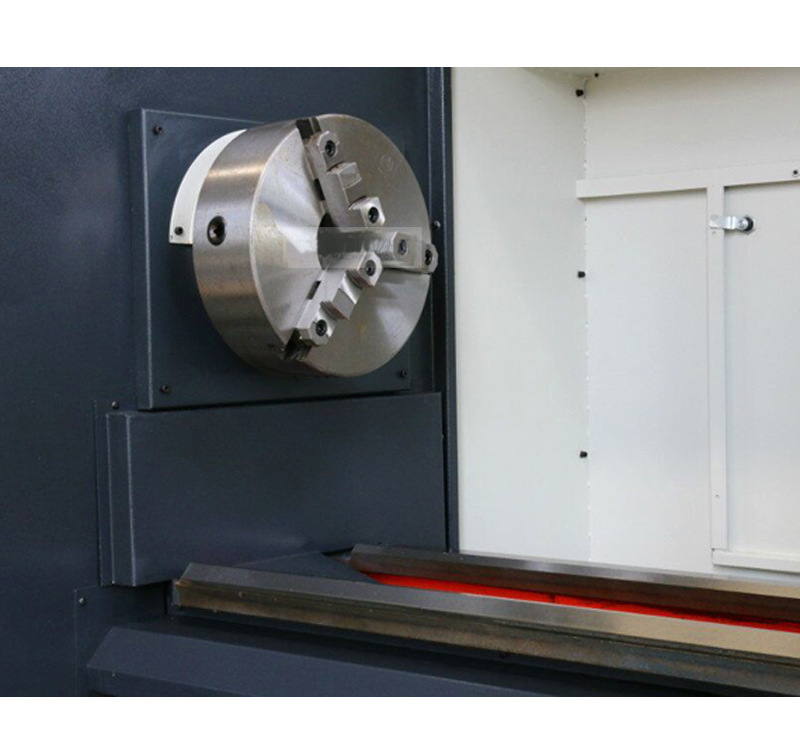

主軸孔徑范圍	Spindle bore	mm	52,(80 for B),[105 for C]
主軸孔徑錐度	Spindle bore taper	-	MT6,(φ90 1:20 for B),[φ113 1:20 for C]
主軸鼻端型號	Spindle nose type	-	C6,(D8 for B),[D8 for C]
主軸轉速級數	Spindle speed steps	-	手動3檔Manual 3 steps (選配Optional: stepless)
主軸轉速范圍	Spindle speed range	rpm	21-150,66-500,162-1500 (選配Optional: 100-1600 )

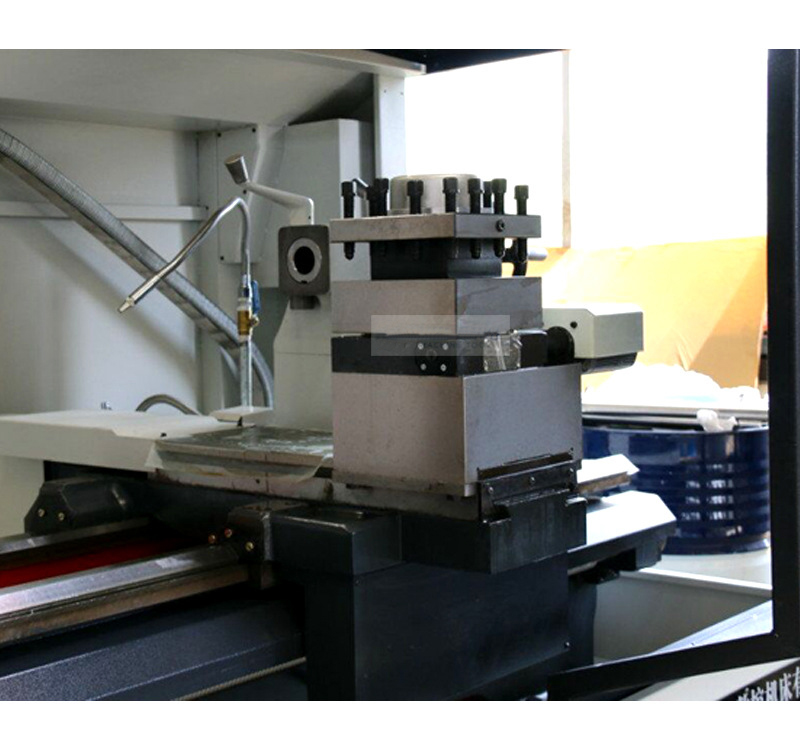

刀架類型	Turret/tool post	-	4工位電動刀架 Eletric 4 position
刀具尺寸	Tool size	mm	25 x 25
X軸行程	X axis travel	mm	400
Z軸行程	Z axis travel	mm	750/1000/1500/2000/3000
X軸快速進給速度	X axis rapid traverse	mm/min	6000
Z軸快速進給速度	Z axis rapid traverse	mm/min	10000

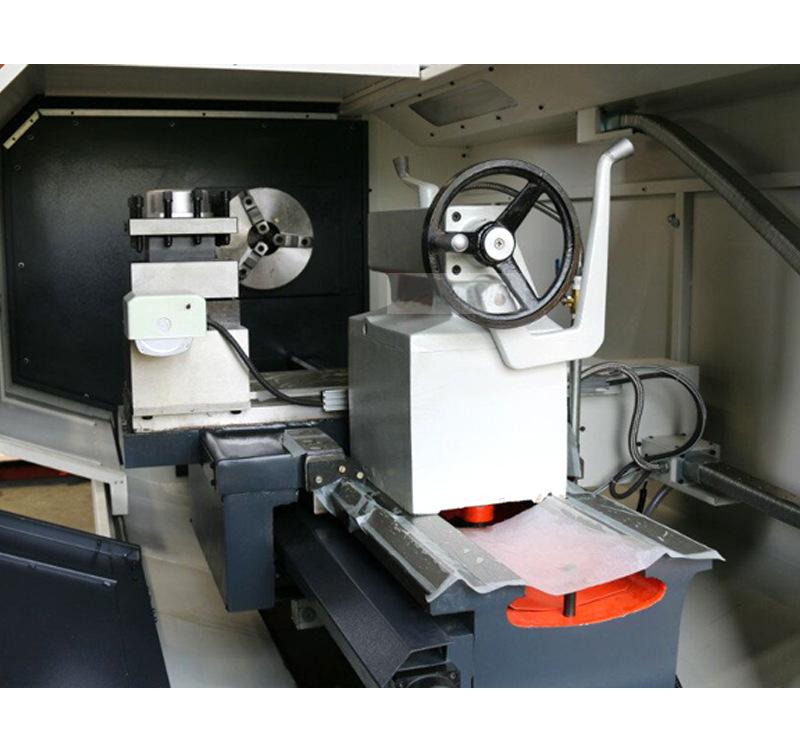

尾座套筒直徑	Tailstock quill diameter	mm	75
尾座套筒錐度	Tailstock quill taper	-	MT5
尾座套筒行程	Tailstock quill travel	mm	150
主軸電機	Main spindle motor	kw	11
冷卻泵電機	Coolant pump motor	kw	0.125
機床重量 Machine weight	Weight for 750	kg	2750
	Weight for 1000	kg	2850
	Weight for 1500	kg	2950
	Weight for 2000	kg	3450
	Weight for 3000	kg	4250
外形尺寸 Overall dimension	Dimension for 750	mm	2550x1750x1900
	Dimension for 1000	mm	2750x1750x1900
	Dimension for 1500	mm	3250x1750x1900
	Dimension for 2000	mm	3700x1750x1900
	Dimension for 3000	mm	4710x1750x1900
