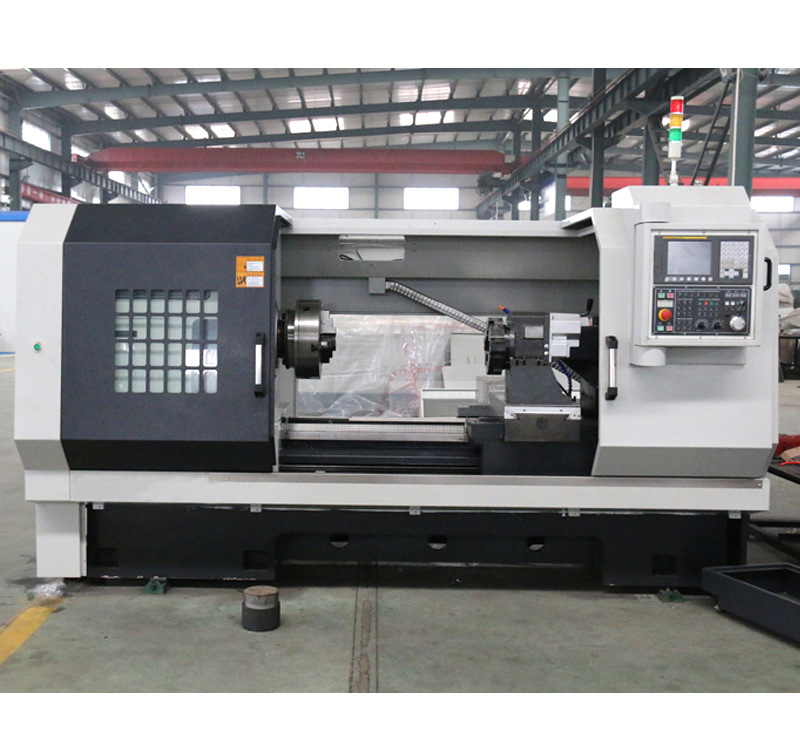

手動換擋Manual

液壓換擋HYD.

床身上更大回轉直徑

Swing over bed

mm

800

橫滑板上更大回轉直徑

Swing over cross slide

mm

480

更大工件長度

Distance between centers

mm

1000/1500/2000/3000/

4000/5000/6000

床身導軌寬度

Guideway width

mm

600

床身承重范圍

Max. load capacity

T

4

主軸孔徑范圍

Spindle bore

mm

104

主軸孔徑錐度

Spindle bore taper

-

Metric φ120/MT5

主軸鼻端型號

Spindle nose type

-

C11

主軸轉速級數

Spindle speed steps

-

3檔變頻

VF. 3 steps

4檔液壓

HYD. 4 steps

主軸轉速范圍

Spindle speed range

rpm

10-800

17-800

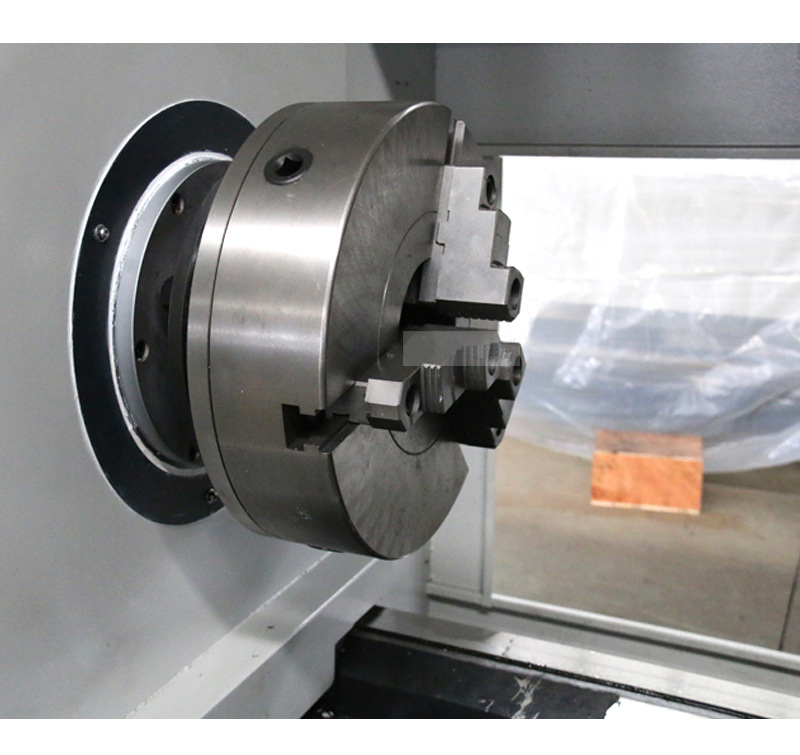

卡盤規格

Chuck

mm

φ400手動三爪/φ400 3-jaw manual

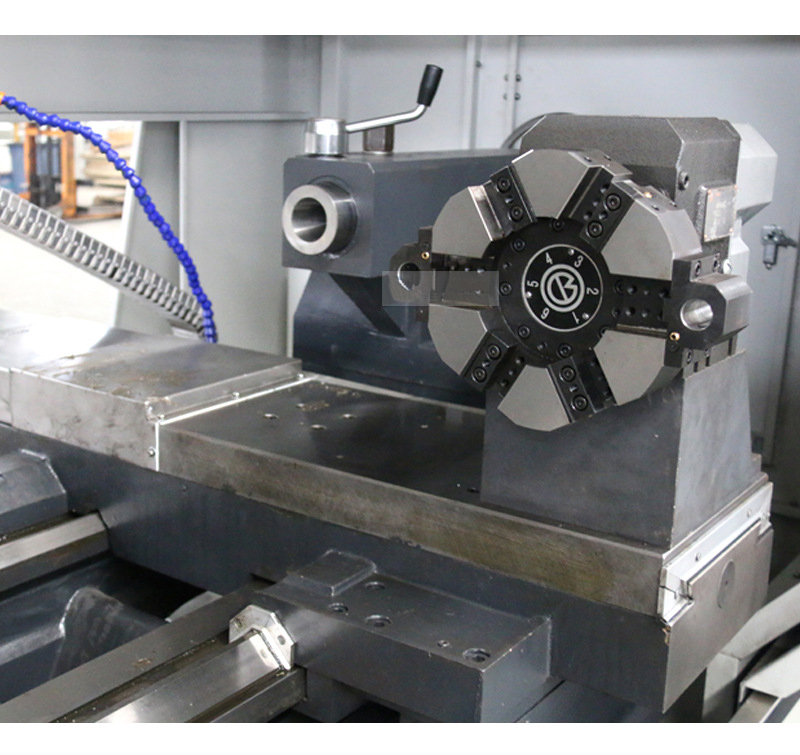

刀架類型

Turret/tool post

-

4工位電動刀架

Eletric 4 position

刀具尺寸

Tool size

mm

32×32

X軸行程

X axis travel

mm

420

Z軸行程

Z axis travel

mm

850/1350/1850/2850/

3850/4850/5850

X軸快速進給速度

X axis rapid traverse

mm/min

4000

Z軸快速進給速度

Z axis rapid traverse

mm/min

6000

尾座套筒直徑

Tailstock quill diameter

mm

φ120

尾座套筒錐度

Tailstock quill taper

-

MT6

尾座套筒行程

Tailstock quill travel

mm

250

主軸電機

Main spindle motor

kw

15

冷卻泵電機

Coolant pump motor

kw

0.125

機床重量

Machine weight

Weight for 1000

kg

4800

Weight for 1500

kg

5200

Weight for 2000

kg

5600

Weight for 3000

kg

6400

Weight for 4000

kg

7200

Weight for 5000

kg

8000

Weight for 6000

kg

8800

外形尺寸

Overall dimension

Dimension for 1000

mm

3500x1950 x 1900

Dimension for 1500

mm

4000x1950 x 1900

Dimension for 2000

mm

4500x1950 x 1900

Dimension for 3000

mm

5500x1950 x 1900

Dimension for 4000

mm

6500x1950 x 1900

Dimension for 5000

mm

7500x1950 x 1900

Dimension for 6000

mm

8500x1950 x 1900
